Condition : New
Steering : Left
Emission Standard : EURO 5
Brand Name : DONGFENG
Place of Origin : Hubei, China
Segement : Light truck
Market Segement : Logistics transportation
Fuel Type : Diesel
Engine Capacity : < 4L
Cylinders : 4
Horsepower : < 150hp
Transmission Type : Manual
Forward Shift Number : 5
Reverse Shift Number : 1
Maximum Torque(Nm) : ≤500Nm
Cargo Tank Dimension : 2.82*1.88*0.4
Cargo Tank length : ≤4.2m
Cargo Tank Type : Column plate
Gross Vehicle Weight : <=5000 kg
Capacity (Load) : 1 - 10t
Fuel Tank Capacity : ≤100L
Drive Wheel : 4X2
Passengers : 5
Driver's Seat : Normal
Seat Rows : Double row
Rear Camera : None
ABS(Antilock Braking System) : Yes
ESC(Electronic Stability Control System) : None
Touch Screen : None
Window : Manual
Tire Number : 6
After-sales Service Provided : Onsite Installation, Video technical support, Field installation, commissioning and training, Online support
Color : Customer's Request
MOQ : 8 sets
Price : CN¥57,122.53/sets 8-17 sets

| Basic information | |
| Announcement model: | EQ1042D3CDF |
| Type: | cargo truck |
| Driving form: | 4X2 |
| Wheelbase: | 2950mm |
| Case length level: | 2.8 m |
| Engine: | Full Chai Q23-132E60 |
| Gearbox: | Wan Li Yang WLY5GT32 |
| Body length: | 5.56 m |
| Body width: | 1.98 m |
| Body height: | 2.28m |
| Front wheel base: | 1472mm |
| Rear wheel base: | 1586mm |
| Vehicle weight: | 2.565 tons |
| Rated load: | 1.605 tons |
| Total mass: | 4.495 tons |
| Maximum speed: | 103KM/h |
| Place of Origin: | Xiangyang in Hubei Province |
| Tonnage class: | Light truck |
| Approach Angle: | 24 degrees |
| Departure Angle: | 10 degrees |
| Front/rear overhang: | 1.05/1.57 meters |
| Engine parameter | |
| Engine type: | Full Chai Q23-132E60 |
| Engine brand: | Whole wood |
| Engine commonly known as: | Full Chai Q23 |
| Number of cylinders: | 4-cylinder |
| Fuel Type: | Diesel oil |
| Cylinder arrangement: | orthostitial |
| Displacement: | 2.3 L |
| Emission standard: | Kokuroku |
| Maximum output power: | 97kw |
| Maximum horsepower: | 132 horsepower |
| Maximum torque: | 320N·m |
| Rated speed: | 3000RPM |
| Engine form: | Common rail |
| Container parameter | |
| Container form: | panel |
| Container length: | 2.82 m |
| Container width: | 1.88m |
| Container height: | 0.4 m |
| Cab parameter | |
| Cab: | Dongfeng |
| Cab width: | 1730mm |
| Number of permitted passengers: | Five people |
| Number of seats: | Double row |
| Transmission parameter | |
| Transmission model: | Wan Li Yang WLY5GT32 |
| Shift mode: | Manual operation |
| Forward gear: | Fifth gear |
| Number of reversals: | one |
| Fuel tank | |
| Fuel tank material: | steel |
| Tank capacity: | 55L |
| Chassis parameter | |
| Front axle allowable load: | 1650KG |
| Frame size: | 148 Straight beam mm |
| Rear axle description: | Bunle 3T |
| Rear axle allowable load: | 2845KG |
| Number of spring pieces: | 5/7 + 3 |
| tyre | |
| Tire Specifications: | 6.50R16 10PR |
| Tire Type: | Vacuum tire |
| Number of tires: | six |
|
|

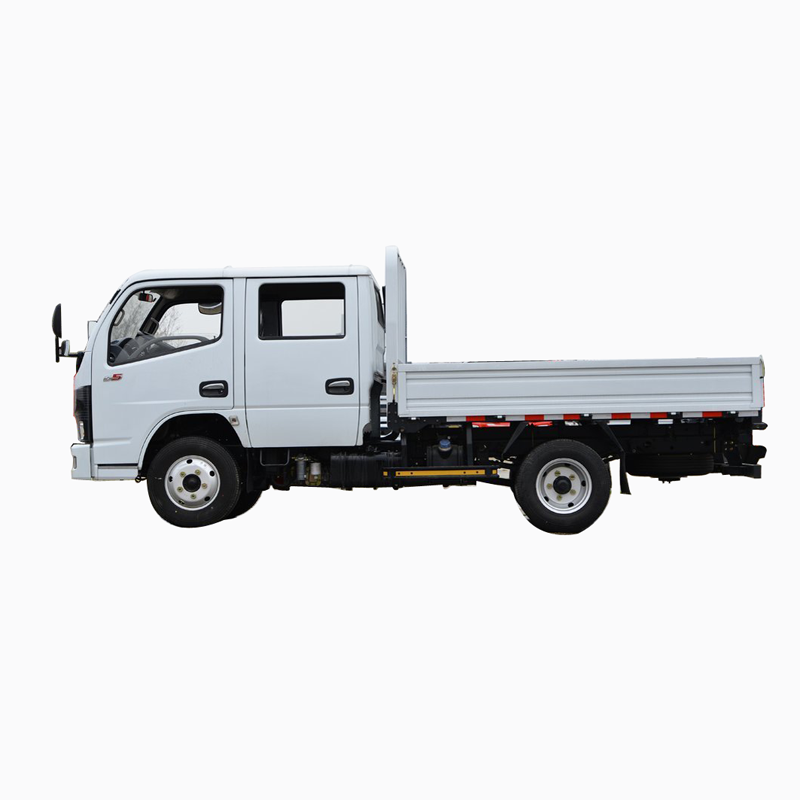

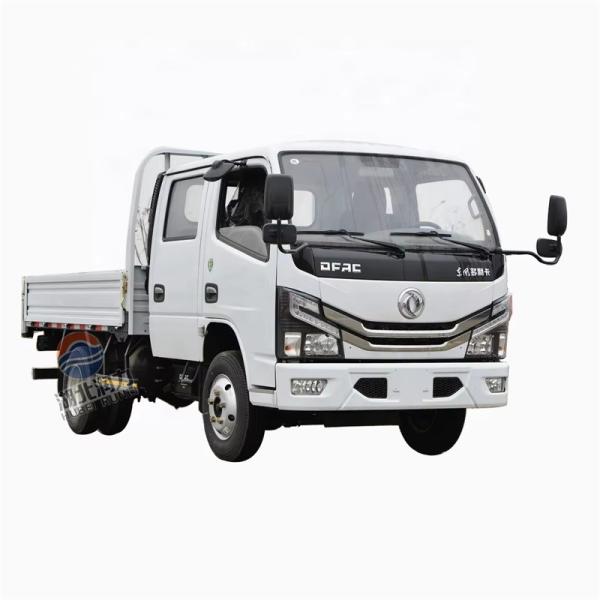

Dongfeng Double Row Cargo Transport Truck With Fence Plate Style Images |
