CAMC 8X4 Dump Truck Self-discharging Truck Tipper

Name: CAMC 8X4 Dump Truck Selfdischarging Truck Tipper
Brand: CAMC
Price: 97 USD

Quality CAMC 8X4 Dump Truck Self-discharging Truck Tipper for sale

Condition : New

Steering : Left

Horsepower : 251 - 350hp

Emission Standard : Euro 4

Brand Name : CAMC

Place of Origin : Hubei, China

Segement : Heavy truck

Market Segement : Engineering transportation

Fuel Type : Diesel

Engine Capacity : > 8L

Cylinders : 6

Transmission Type : Manual

Forward Shift Number : 9

Reverse Shift Number : 1

Maximum Torque(Nm) : 1500-2000Nm

Cargo Tank Dimension : 6500x2300x1330mm

Cargo Tank length : 6.2-8m

Gross Vehicle Weight : ≥30T

Capacity (Load) : 11 - 20T

Fuel Tank Capacity : 300-400L

Drive Wheel : 8X4

Passengers : 6

Driver's Seat : Normal

Rear Camera : None

ABS(Antilock Braking System) : Yes

ESC(Electronic Stability Control System) : None

Touch Screen : None

Window : Manual

Tire Number : 12

After-sales Service Provided : Onsite Installation, Video technical support, Field installation, commissioning and training, Online support

Color : Customer's Request

Steering position : Customer's Request

Price : CN¥97,614.45/units 1-17 units

Contact Now

CAMC 8X4 Dump Truck Self-discharging Truck Tipper

Announcement model:	HN3310BC34B8M4
Driving form:	8X4
Wheelbase:	1940+3760+1350mm
Body length:	9.38 m
Body width:	2.495 meters
Body height:	3.7 m
Front wheel base:	2065/2065mm
Rear wheel base:	1860/1860mm
Vehicle weight:	14.805 tons
Rated load:	16.065 tons
Total mass:	31 tons
Tonnage class:	Heavy truck
Approach Angle:	20 degrees
Departure Angle:	23 degrees
Market segments:	Urban debris, road transport
Engine type:	Weichai WP10.336E40
Engine brand:	Weichai
Number of cylinders:	6-cylinder
Fuel Type:	Diesel oil
Displacement:	9.726 L
Emission standard:	Euro IV
Maximum horsepower:	336 horsepower
Maximum output power:	247kW
Maximum torque:	1500N·m
Maximum torque speed:	1300-1600rpm
Rated speed:	1900rpm
Engine form:	Water-cooled, four-stroke, with exhaust brake, direct injection, supercharged intercooling
Container length:	6.5 m
Container width:	2.3 m
Container height:	1.33 m
Container form:	Back dump type
Transmission model:	Fast 9JS150T-B
Transmission brand:	Fast
Forward gear:	9th speed
Number of reversals:	one
Rear axle description:	And install double shafts
Rear axle allowable load:	18000kg
Speed Ratio:	5.73
Number of spring pieces:	2009/9/12
Tire Specifications:	11.00 R20
Number of tires:	twelve

Product Tags:

euro 4 dump truck

euro 4 dump tipper truck

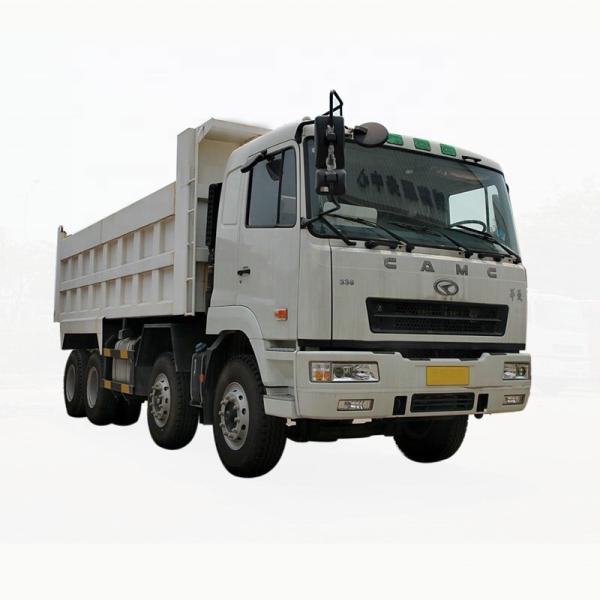

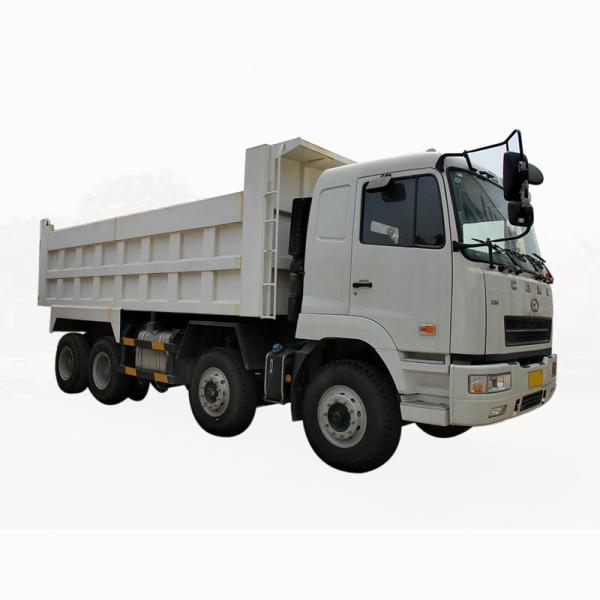

CAMC 8X4 Dump Truck Self-discharging Truck Tipper Images
