JAC 4X2 Dump Truck Unimog Truck Self-discharging Dumper

Condition : New

Steering : Left

Horsepower : 129

Emission Standard : Euro4

Brand Name : JAC

Place of Origin : Hubei, China

Segement : Light truck

Market Segement : Highway transportatopn

Fuel Type : Diesel

Engine Capacity : < 4L

Cylinders : 4

Transmission Type : Manual

Forward Shift Number : 5

Reverse Shift Number : 1

Maximum Torque(Nm) : ≤500Nm

Cargo Tank Dimension : 4000x2150x800mm

Cargo Tank length : ≤4.2m

Gross Vehicle Weight : 5-10T

Capacity (Load) : 1 - 10t

Fuel Tank Capacity : 100-200L

Drive Wheel : 4X2

Passengers : 5

Rear Camera : None

Cruise Control : None

ABS(Antilock Braking System) : Yes

ESC(Electronic Stability Control System) : None

Touch Screen : None

Tire Number : 6

After-sales Service Provided : Onsite Installation, Video technical support, Field installation, commissioning and training, Online support, Free spare parts

Color : Customer's Request

Steering position : Customer's Request

Price : CN¥72,234.70/units 1-17 units

Contact Now

JAC 4X2 Dump Truck Unimog Truck Self-discharging Dumper

Driving form:	4X2
Wheelbase:	3400mm
Body length:	6.295 m
Body width:	2.35m
Body height:	2.6 m
Front wheel base:	1665mm
Rear wheel base:	1724mm
Vehicle weight:	5.53 tons
Rated load:	5.99 tons
Total mass:	11.715 tons
Tonnage class:	Light truck
Approach Angle:	30 degree
Departure Angle:	17 degrees
Market segments:	Engineering transportation
Engine type:	Power in the cloud YN38CRD1
Engine brand:	Intra-cloud dynamics
Number of cylinders:	4-cylinder
Fuel Type:	Diesel oil
Displacement:	3.76 L
Emission standard:	Euro IV
Maximum horsepower:	129 horsepower
Maximum output power:	95kW
Maximum torque:	315N·m
Maximum torque speed:	1600-2400rpm
Rated speed:	3000rpm
Engine form:	Electronic control, water-cooled EGR technology, electronically controlled high pressure common rail fuel injection technology, post-processing DOC+POC
Container length:	Four meters
Container width:	2.15 m
Container height:	0.8 m
Container form:	Back dump type
Transmission model:	Wanliyang WLY1046H
Transmission brand:	Myriyan
Forward gear:	Fifth gear
Number of reversals:	one
Tank capacity:	120L
Front axle allowable load:	4220kg
Rear axle description:	unitary
Rear axle allowable load:	7495kg
Number of spring pieces:	2007/10/10
Tire Specifications:	8.25 R20
Number of tires:	six

Product Tags:

highway transportatopn dump truck

highway transportatopn dump tipper truck

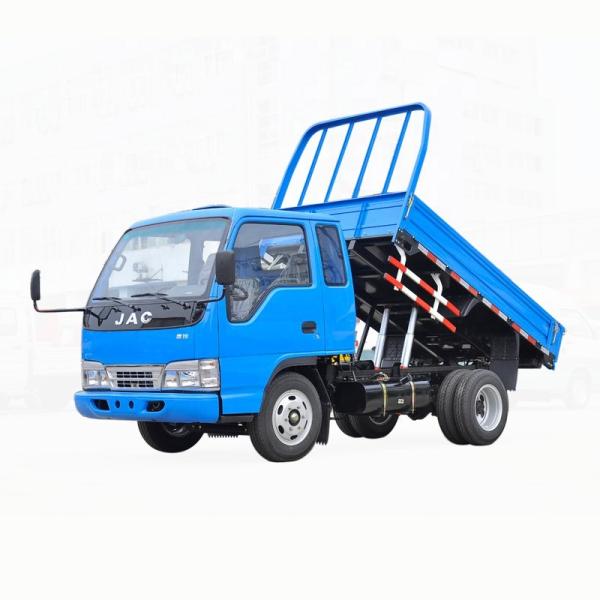

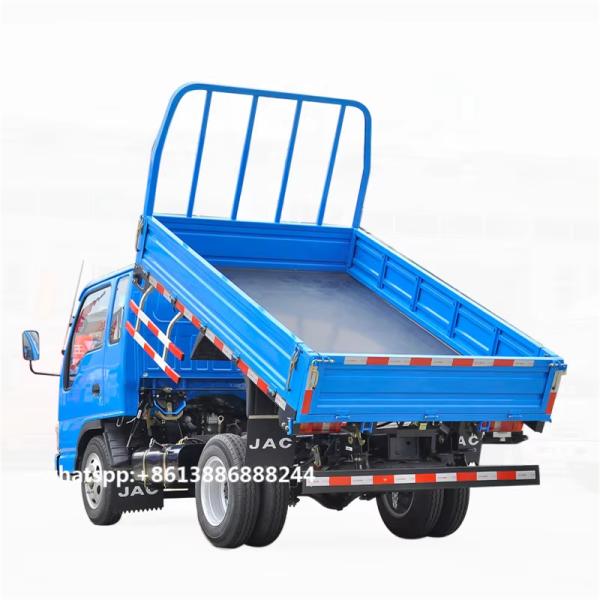

JAC 4X2 Dump Truck Unimog Truck Self-discharging Dumper Images
