WAW 4X2 Dump Truck

Condition : New

Steering : Left

Horsepower : 120

Emission Standard : Euro 6

Brand Name : WAW

Place of Origin : Hubei, China

Segement : Light truck

Market Segement : Urban construction muck transportation

Fuel Type : Diesel

Engine Capacity : 4 - 6L

Cylinders : 4

Transmission Type : Manual

Forward Shift Number : 8

Reverse Shift Number : 2

Maximum Torque(Nm) : 500-1000Nm

Cargo Tank Dimension : 5300x2300x800mm

Cargo Tank length : 4.2-5.3m

Gross Vehicle Weight : 5-10T

Capacity (Load) : 1 - 10t

Fuel Tank Capacity : 100-200L

Drive Wheel : 4X2

Passengers : 3

Driver's Seat : Air suspension

Rear Camera : None

Cruise Control : None

ABS(Antilock Braking System) : Yes

ESC(Electronic Stability Control System) : None

Touch Screen : None

Window : Automatic

Tire Number : 6

After-sales Service Provided : Onsite Installation, Video technical support, Field installation, commissioning and training, Online support, Free spare parts

Color : Customer's Request

MOQ : 9 units

Price : CN¥78,814.63/units 9-17 units

Contact Now

WAW 4X2 Dump Truck

Announcement model:	FD3186P63K6-1
Driving form:	4X2
Wheelbase:	4200mm
Body length:	7.56 m
Body width:	2.4 m
Body height:	2.6 m
Front wheel base:	1830mm
Rear wheel base:	1810mm
Vehicle weight:	6.6 tons
Rated load:	11.205 tons
Total mass:	18 tons
Tonnage class:	Light truck
Approach Angle:	22 degrees
Departure Angle:	16 degrees
Engine type:	Power in the cloud D40TCIF1
Engine brand:	Intra-cloud dynamics
Number of cylinders:	4-cylinder
Fuel Type:	Diesel oil
Displacement:	4L
Emission standard:	euro6
Maximum horsepower:	184 horsepower
Maximum output power:	135kW
Maximum torque:	660N·m
Maximum torque speed:	1200-2000rpm
Rated speed:	2300rpm
Engine form:	Electronic common rail system HEGR+DOC+DPF+SCR+ASC
Container length:	5.3 m
Container width:	2.3 m
Container height:	0.8 m
Container form:	self-discharging
Hydraulic cylinder brand model:	100, 110
Material of cargo box:	Q235A, CR780/980MS, etc
Container thickness:	Side 1 base 1, side 2 base 3, side 3 base 5 and so on
Cab:	Single row
Main seat form:	Airbag cushioned seats
Transmission model:	Fast 8JS85TE-C
Transmission brand:	Fast
Forward gear:	Eighth speed
Number of reversals:	two
Tank capacity:	150L
Front axle allowable load:	6500kg
Rear axle description:	9T
Rear axle allowable load:	11500kg
Speed Ratio:	5.143
Number of spring pieces:	10/10 + 9
Tire Specifications:	10.00R20 18PR
Number of tires:	six
ABS Anti-lock:	yes
Integrated fender:	yes
Side skirt plate:	yes
Independent warm air:	yes
Power Windows:	yes
Power interface:	24V
Remote control key:	yes
Electronic central lock:	yes
External audio source interface (AUX/USB/iPod, etc.) :	yes
Radio:	yes
Parking brake:	Cutoff brake
Engine braking:	yes
Front wheel brake:	Drum brake
Rear wheel brake:	Drum brake
Vehicle networking system:	yes

Product Tags:

4X2 dump truck with warranty

WAW dump truck heavy duty

dump truck for construction

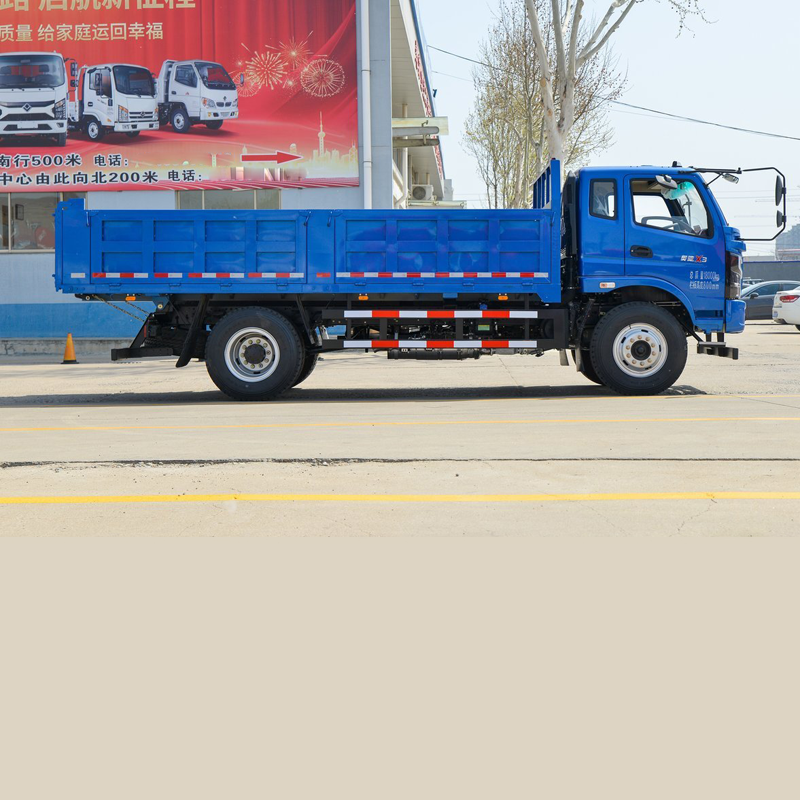

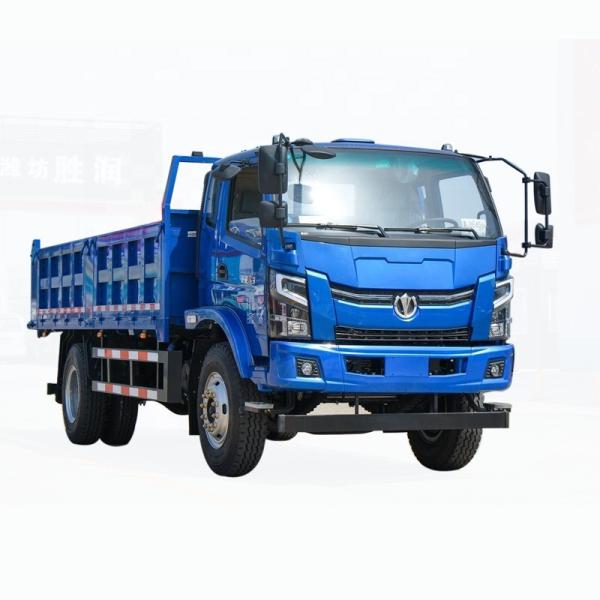

WAW 4X2 Dump Truck Images
